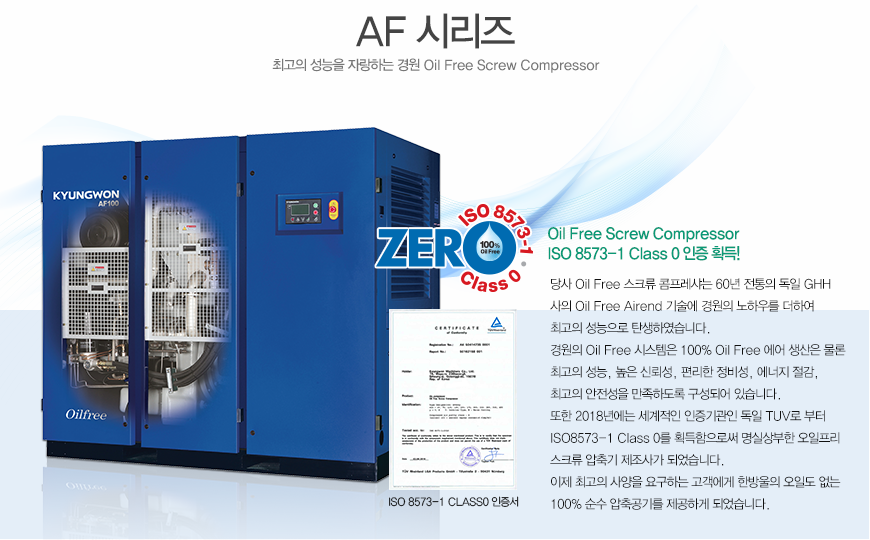

오일프리스크류- AF SERIES

Compressor Type	Max.Working Pressure		Capacity		Motor Power		Noise	Dimension(LxWxH)	Weight	Air Outlet
Compressor Type	barg	psig	㎥/min	cfm	kw	HP	dB(A)	mm	kg	A(B)
AF75	7.0 8.5 9.5※	100 120 135	8.5 8.5 7.8	302 300 274	55	75	83	2300x1570x2090	2600	50(2)
AF100	7.0 8.5 9.5	100 120 135	12.5 11.5 11.4	441 406 403	75	100	83	2300x1570x2090	2800	50(2)
AF125	7.0 8.5 9.5	100 120 135	15.0 15.0 12.9	530 528 455	93	125	84	2700x1660x2350	3200	80(3)
AF150	7.0 8.5 9.5	100 120 135	19.7 16.8 16.8	696 593 592	110	150	88	2700x1660x2350	3250	80(3)
AF175	7.0 8.5 9.5	100 120 135	22.2 19.7 19.6	782 694 693	132	175	89	2700x1660x2350	3300	80(3)
AF200	7.0 8.5 9.5	100 120 135	26.1 23.6 23.6	923 834 833	160	215	89	2700x1660x2350	3350	80(3)
AF250	7.0※ 8.5※ 9.5※	100 120 135	33.6 32.6 27.5	1,187 1,151 971	190	250	89	3320x2150x2400	4250	100(4)
AF300	7.0※ 8.5※ 9.5※	100 120 135	39.9 36.0 33.5	1,409 1,271 1,183	220	300	89	3320x2150x2400	4400	100(4)
AF350	7.0 8.5 9.5※	100 120 135	45.1 42.7 39.8	1,592 1,507 1,406	260	350	90	3320x2150x2400	4650	100(4)
AF400	7.0 8.5 9.5	100 120 135	50.4 45.5 45.0	1,781 1,608 1,588	300	400	90	3320x2150x2400	4800	100(4)

Compressor Type	Max.Working Pressure		Capacity		Motor Power		Noise	Dimension(LxWxH)	Weight	Air Outlet
Compressor Type	kgf/㎠G	psig	㎥/min	cfm	kw	HP	dB(A)	mm	kg	A(B)
AF50V	7.0 8.5 9.5	100 120 135	2.0~5.6 2.0~5.2 2.0~4.9	71~198 71~184 71~173	37	50	78	1900x1180X2030	1800	40(1 1/2)
AF75V	7.0 8.5 9.5	100 120 135	4.5~8.5 4.5~8.5 4.2~7.8	159~302 159~300 148~274	55	75	83	2300x1570x2090	2680	50(2)
AF100V	7.0 8.5 9.5	100 120 135	6.5~12.5 6.0~11.5 6.0~11.4	230~441 212~406 194~403	75	100	83	2300x1570x2090	2880	50(2)
AF125V	7.0 8.5 9.5	100 120 135	9.0~15.0 8.5~15.0 8.2~12.9	318~530 300~528 290~455	93	125	84	2700x1660x2350	3200	80(3)
AF150V	7.0 8.5 9.5	100 120 135	12.0~19.7 11.0~16.8 11.0~16.8	424~696 388~593 388~592	110	150	88	2700x1660x2350	3370	80(3)
AF175V	7.0 8.5 9.5	100 120 135	14.0~22.2 13.0~19.7 13.0~19.6	494~782 459~694 459~693	132	175	89	2700x1660x2350	3460	80(3)
AF200V	7.0 8.5 9.5	100 120 135	16.0~26.1 15.0~23.6 15.0~23.6	565~923 530~834 530~833	160	215	89	2700x1660x2350	3550	80(3)
AF250V	7.0 8.5 9.5	100 120 135	18.0~33.6 17.0~30.3 16.0~27.5	636~1187 600~1070 565~971	190	250	89	3850x2150x2400	4430	100(4)
AF300V	7.0※ 8.5 9.5	100 120 135	22.0~39.9 20.0~36.0 20.0~33.5	777~1409 706~1271 706~1183	220	300	89	4070x2150x2400	4780	100(4)
AF350V	7.0 8.5 9.5※	100 120 135	26.0~45.1 25.0~42.7 24.0~39.8	918~1592 883~1507 848~1406	260	350	90	4070x2150x2400	5040	100(4)
AF400V	7.0 8.5※ 9.5	100 120 135	30.0~50.4 28.0~45.5 27.0~45.0	1059~1781 989~1608 953~1588	300	400	90	4070x2150x2400	5210	100(4)
