| Model | CONNECTION | Electrical Power (ØxVxHz) |
Maximum Temperature |
Operation Pressure |
Timer Intercal/ Drain Cycle |
|---|---|---|---|---|---|

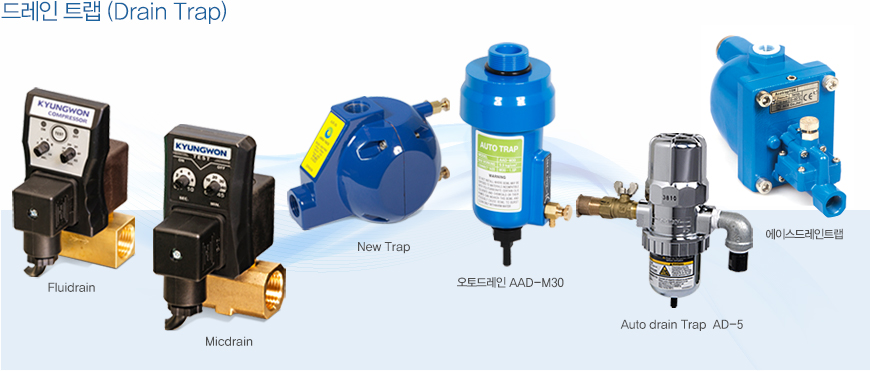

| Fluidrain | G1/2" | 1ph 230VAC 50-60Hz | Max. 90℃ | 16 bar | 0.5-10 sec. (ON) 0.5-45min (OFF) |
| MICdrain | G1/2" | 1ph 230VAC 50-60Hz | Max. 90℃ | 16 bar | 0.5-10 sec. (ON) 0.5-45min (OFF) |
| Model | Max. Pressure | Connection |
|---|---|---|
| Fluidrain 16 | 16 Kgf/㎠ | PT1/2＂ |
| Fluidrain 80 | 80 Kgf/㎠ | PT1/4＂ |
| Fluidrain 250 | 250 Kgf/㎠ | PT1/4＂ |
- Fluidrain : 고급형 모델 (세계 각국의 인증획득 제품) / Micdrain : 보급형 모델
| Model | Pressure | Connection |
|---|---|---|
| AAD-15A | 1.5~13kgf/㎠ | PT 1/2" |
| AAD-M30 | 1.5~13kgf/㎠ | PT 1/2" |
| NEW TRAP | 1.5~13kgf/㎠ | M30 |
| AD-5 | 2.9~9.8kgf/㎠ | RC 1/2” |
| Acedrain 15 | 3~9.9kgf/㎠ | PT 1/2" |

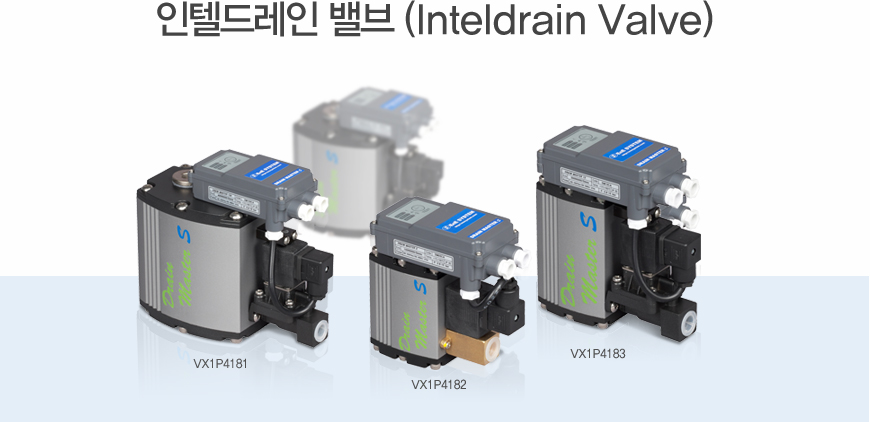

| Model | DRAIN MASTER S | DRAIN MASTER HP |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| DM-5N | DM-15 | DM-50 | DM-150 | DM-500 | DM-1500 | DM-15HP | DM-50HP | DM-150HP | |
| Compressor Capacity(㎥/min) | 5 | 15 | 50 | 150 | 500 | 1500 | 15 | 50 | 150 |
| Dryer Capacity(㎥/min) | 10 | 30 | 100 | 300 | 1000 | 3000 | 30 | 100 | 300 |
| Filter Capacity(㎥/min) | 50 | 150 | 500 | 1500 | - | - | 150 | 500 | - |
| Operating Pressure (bar) | 0.8 ~ 16 | 1.2 ~ 60 | |||||||
| Voltage AC (bar) | Free Voltage 90 ~ 260, 24/48Vac, 24/48Vdc | ||||||||
| Application | Oil Injection, Oil Free | ||||||||
| Temperature (℃) | +1 ~ 80 | ||||||||
| Inlet (inch) | 1/2＂x 2 | 3/4＂x 3 | 3/4＂x 2.1＂x 1 | 1/2＂x 2 | 3/4＂x 3 | ||||
| Outlet (inch) | 3/8＂ | 1/2＂ | 3/8＂ | ||||||
| Housing Material | Aluminium, Hardcoated | ||||||||
| Weight (kg) | 1.30 | 1.65 | 2.20 | 3.30 | 5.30 | 7.30 | 1.95 | 2.50 | 4.05 |
- 결빙지역에서는 자동온도조절장치(Heater unit)를 장착하여야 함.
