Model | Max. Working pressure | capacity | Motor Power | Noise | Dimension | Weight | Air Outlet | |||
---|---|---|---|---|---|---|---|---|---|---|
bar | psig | ㎥/min | cfm | kW | HP | dB(A) | mm | kg | A(B) | |
AS7P | 7.0 | 100 | 0.83 | 29 | 5.5 | 7.5 | 58 | 1030x740x1275 | 335 | 20(3/4) |
9.0 | 130 | 0.66 | 24 | |||||||
AS10P | 7.0 | 100 | 1.2 | 42 | 7.5 | 10 | 58 | 1030x740x1275 | 355 | 20(3/4) |
9.0 | 130 | 1.0 | 35 | |||||||
AS15P | 7.0 | 100 | 1.9 | 67 | 11 | 15 | 62 | 1100x800x1275 | 395 | 20(3/4) |
9.0 | 130 | 1.6 | 47 | |||||||

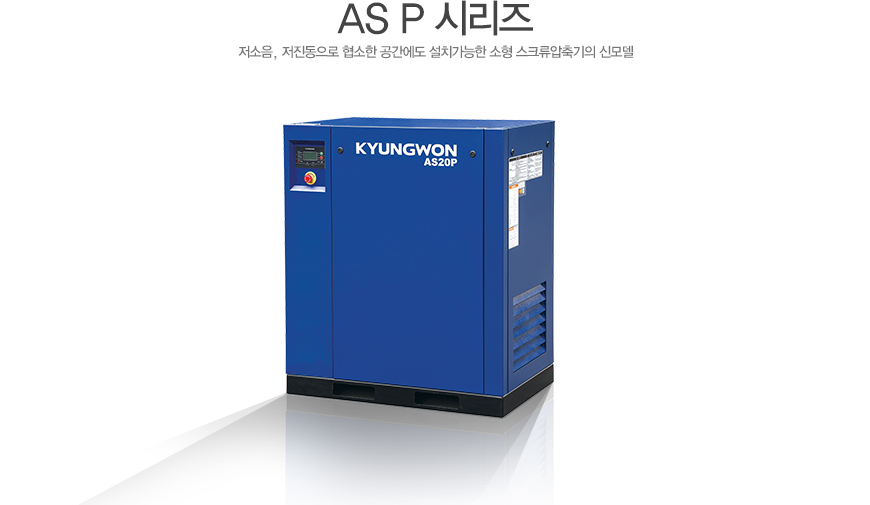

AS20P | 7.0 | 100 | 2.6 | 92 | 15 | 20 | 68 | 1100x800x1275 | 580 | 25(1) |
9.0 | 130 | 2.2 | 78 |
